Direct Drop-In Performance & Fast Retrofit Delivery
TBM Belted MRL Replacement Machine
Keep Your Modernization on Schedule.
Eliminate proprietary bottlenecks. Avoid hoistway re-engineering. Meet strict modernization deadlines with the Torin TBM, engineered specifically for 2:1 belted MRL systems.
or call (901) 290-1600 | Learn more about our other capabilities
Belted MRL modernizations can’t wait on proprietary backlogs.
When first-generation belted MRL machines reach end-of-life or suffer mechanical failure, contractors are often faced with proprietary replacement lead times, exorbitant costs, or complete hoistway structural rework.
The Torin TBM is your open-market, drop-in mechanical solution, engineered to interface directly with existing 2:1 belted structural layouts, keeping projects on schedule, controlling costs, and getting cars running without reinventing the hoistway.
Long lead times and proprietary lock-in on OEM belted replacement machines
Unplanned downtime costs money, delays inspections, and frustrates building owners
Costly structural re-work when retrofitting traditional overhead spaces
Sourcing headaches trying to coordinate separate belts, shackles, and safety components
The Problem
The Solution

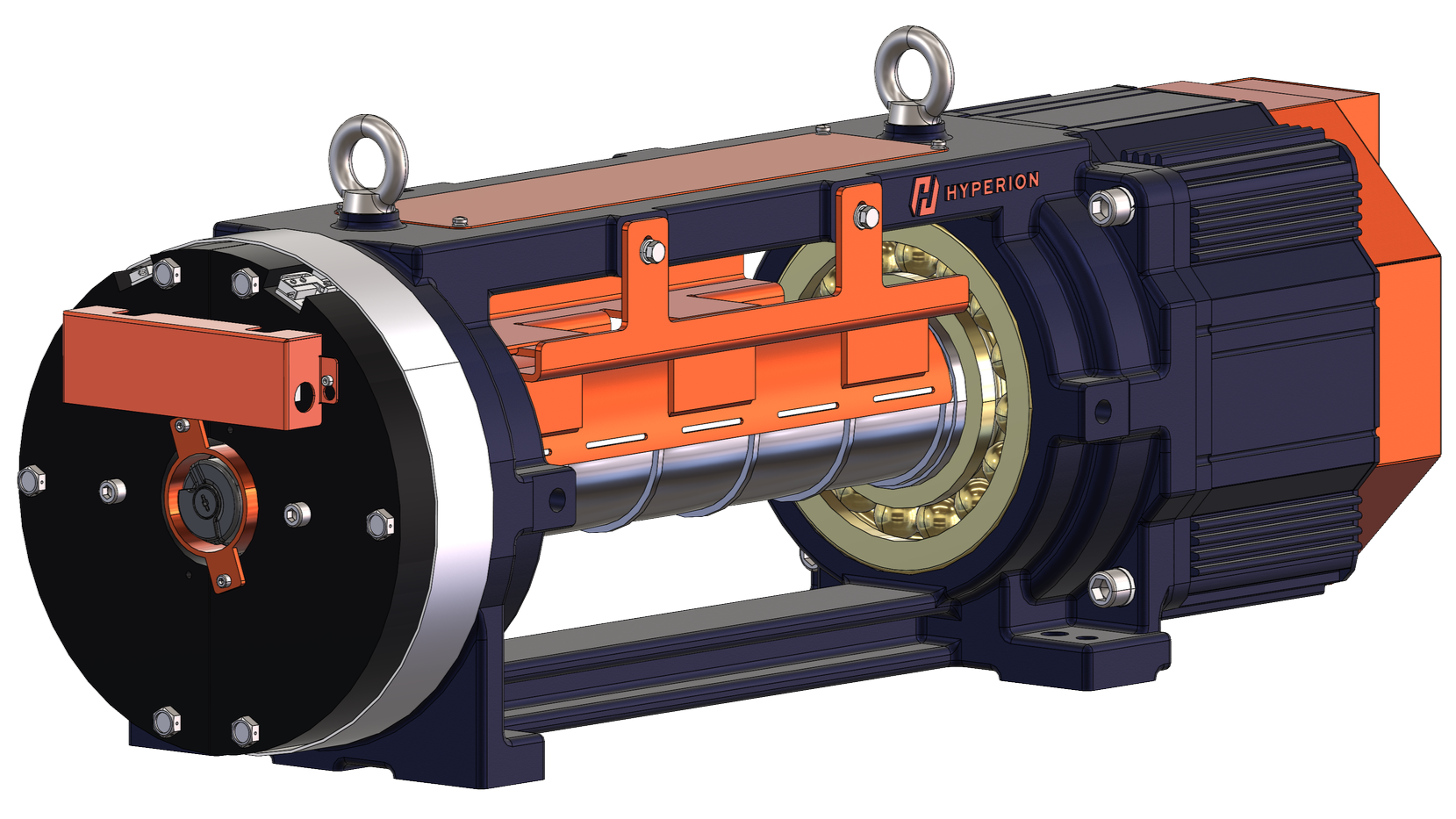

Torin TBM Belted MRL Machine
When an existing 2:1 belted MRL needs modernizing, the TBM installs directly onto existing bedplate configurations. Paired with included coated steel belts, factory-matched shackles, and complete ZZIPCO hardware kitting, you get an open-market, code-compliant replacement package in a single coordinated delivery.
Direct Drop-In Design – Interfaces with existing 2:1 belted bedplates and structural steel
Included Suspension – Complete 73 kN coated steel belt set and termination hardware
Complete Turnkey Kitting – Compatible with matched ZZIPCO mechanical accessories
High-Efficiency Duty Cycle – 180 starts/hour rating for demanding commercial traffic
Thermal Protection – Class F insulation rated for confined MRL overhead spaces
Open Support Architecture – Direct technical backing from Torin Drive North America
Key Features & Benefits:
Rated Capacity: 3,500 lbs (scaling to 5,000 lbs)
Rated Speed: 350 FPM (scaling to 500 FPM)
Suspension: 73 kN coated steel belts (belts & shackles included)
Max Travel: 328 ft
Max Sheave Shaft Load: 43.2 kN
Rated Torque: 227 ft-lb
Duty / Starts: 180 starts / hour
Winding Insulation: Class F
Specs Snapshot:
“A direct drop-in replacement designed to eliminate modernization bottlenecks in legacy 2:1 belted MRLs.”
Keep Your Modernization Projects Moving
Fill out the form below or call us to request your Torin TBM submittal package and pricing today.
Learn More
Reach out today or complete the form.
(901) 290-1600
